Cu Zn Al2O3 Methanol Synthesis Catalyst DZC-98-5

METHANOL SYNTHESIS CATALYAT (DZC-98-5)
A highly efficient and stable catalyst designed for methanol production. It has excellent catalytic activity and selectivity and can achieve high methanol yield at low temperatures and pressures.
The reaction is summarized as below:
2H2 + CO → CH3OH
CO2 + 3 H2 → CH3OH + H2O
CO + H2O → CO2 + H2

PRODUCT DESCRIPTION

Product features and scope of application
Copper and zinc based methanol synthesis catalysts are widely used in methanol production process. DZC-98-5 Methanol synthesis catalyst is widely applicable to methanol plants with various technologies, including medium and low pressure processes. Properties of the catalyst are greatly enhanced after a remarkable improvement made on its preparation technology. As the result, the catalyst is featured by higher activity, space-time yield and CO conversion. Meanwhile, the catalyst comes with better thermal stability and tolerance to heat, longer service life, better selectivity, higher methanol concentration and less organic by-products in raw product. Also, it has a wide range of operation condition, ease in reduction and operation, higher strength and little pressure drop across the bed.

Product composition
DZC-98-5 catalyst is based on copper and zinc.

Physical properties:

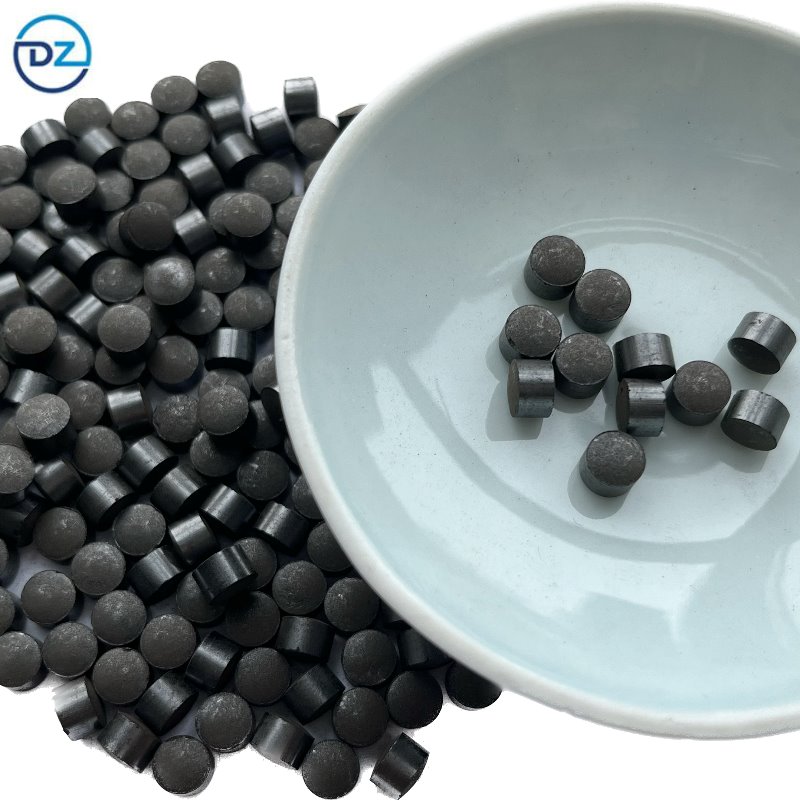

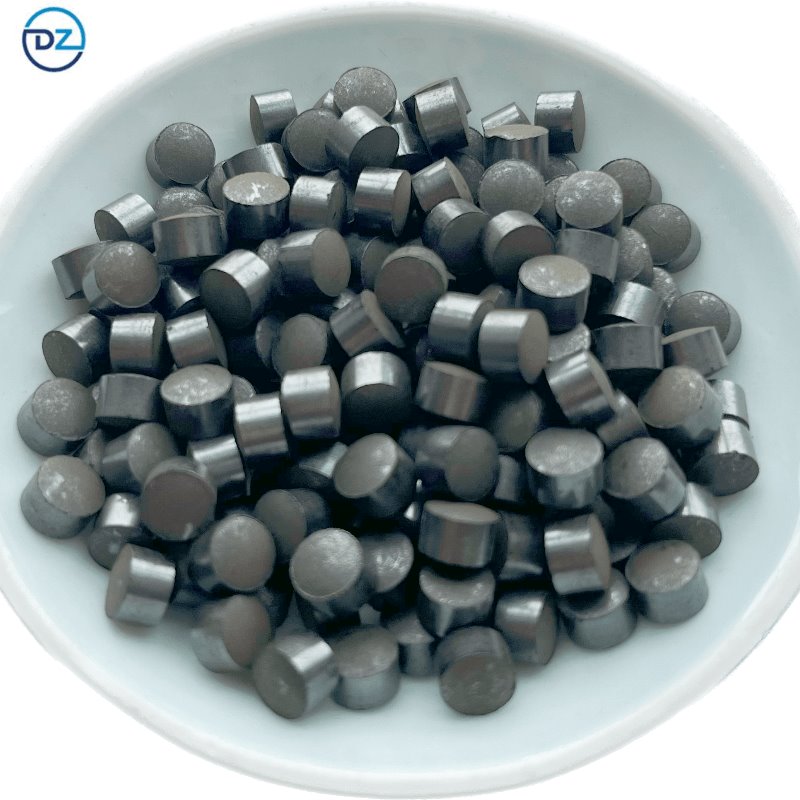

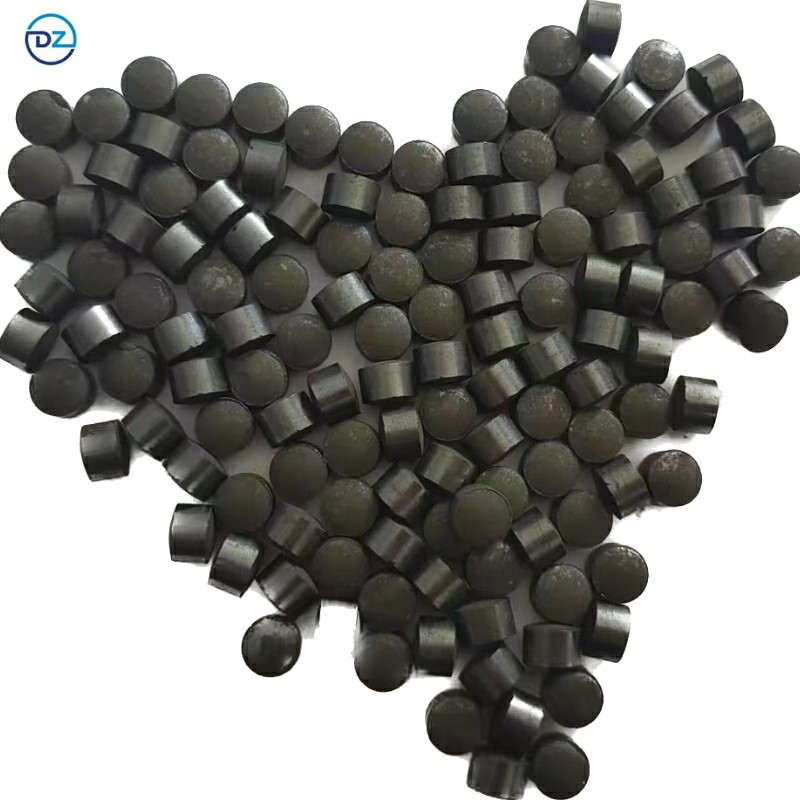

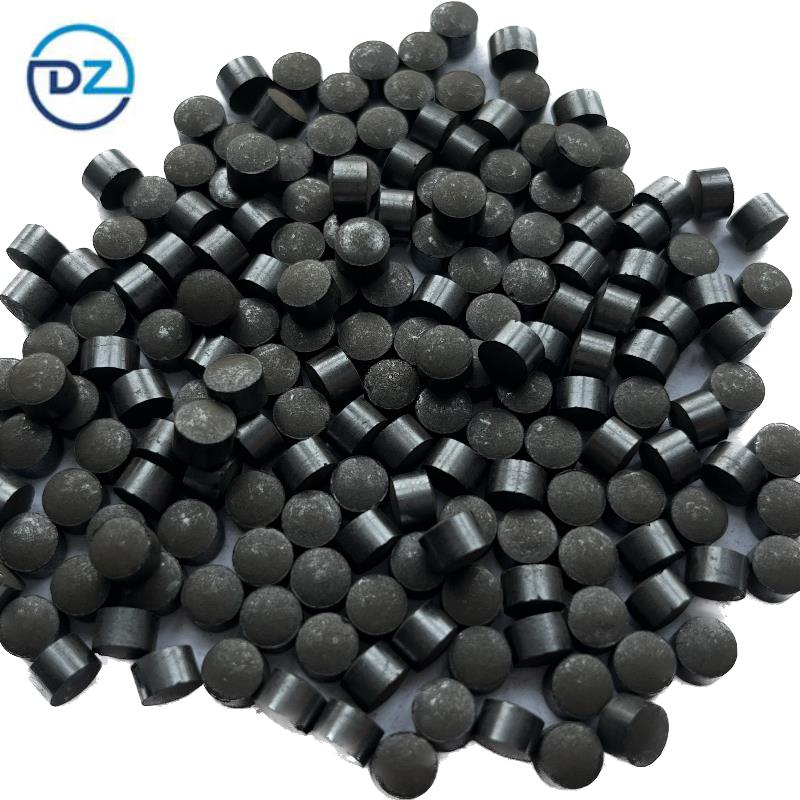

Appearance	Black tablet	Particle size	Φ5×4-5mm
Bulk density	1.1-1.4 kg/L	Chemical composition	CuO(＞52%) –ZnO(＞21%)-Al2O3(＞8%)

Product benefits

① Unique preparation technology ensures excellent high temperature activity, stability and selectivity of methanol synthesis catalyst.

② Using space isolation (Space Isolation) method to improve the activity of the catalyst and enhance the high temperature stability of the catalyst.

③ The use of special methods to form zinc aluminum spinel compounds, effectively preventing and delaying the thermal sintering of copper particles, and enhancing the heat resistance and stability of the catalyst.

④ With the use of special granulation and molding technology, the catalyst has a suitable strength distribution and pore size distribution, improving the overall performance.

Package and storage

The catalyst is packed in iron barrels lined inside with plastic bags.

It should be stored in dry and well-ventilated place.

The catalyst can usually be stored for several years without remarkable deterioration in its properties.
