Hydrocarbon Reforming Catalyst (DZC-28K)-Primary Steam Reforming Catalyst-

Hydrocarbon Reforming Catalyst (DZC-28K)

DZC-28K is sintered type steam-reforming catalyst for gaseous hydrocarbon, with nickel as the active ingredient, alumina as the support, and basic oxides as the promoter.

The reaction is summarized as below:
C2H6→CH4
C3H8→CH4
C4H10→CH4
…
C8H18→CH4
CH4 + H2O ⇌ CO + 3H2
CO + H2O ⇌ CO2 + H2a

PRODUCT DESCRIPTION

Application:

DZC-28K has a more reasonable appearance structure to improve the strength and outer surface area, a more reasonable structure to improve the effective utilization of the inner surface area, adding basic oxides as promoter to improve the catalyst activity at low temperature and anti-carbon formation ability. DZC-28K is used in chemical fertilizer/methanol/hydrogen production plants, etc., utilizing high hydrocarbon materials such as LNG/naphtha/petroleum associated gas/refinery off-gas etc. as feedstock.

Product composition

Typical physical and chemical property

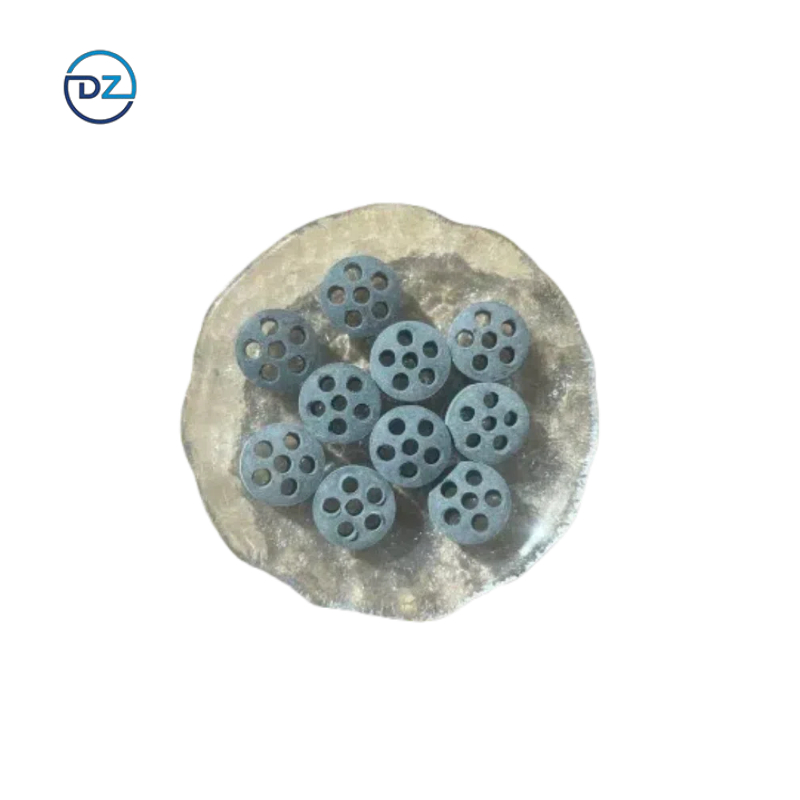

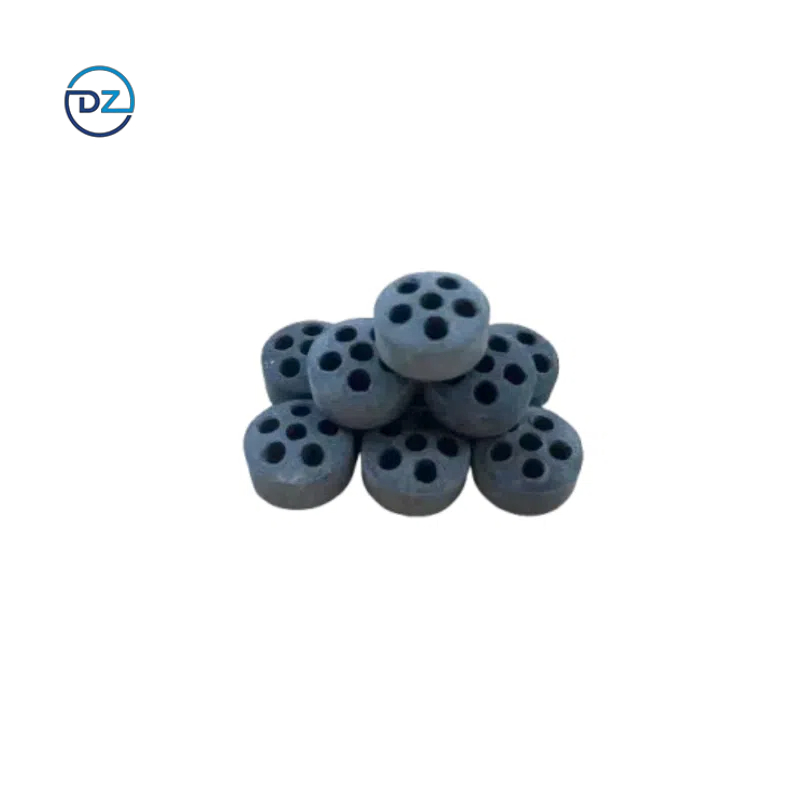

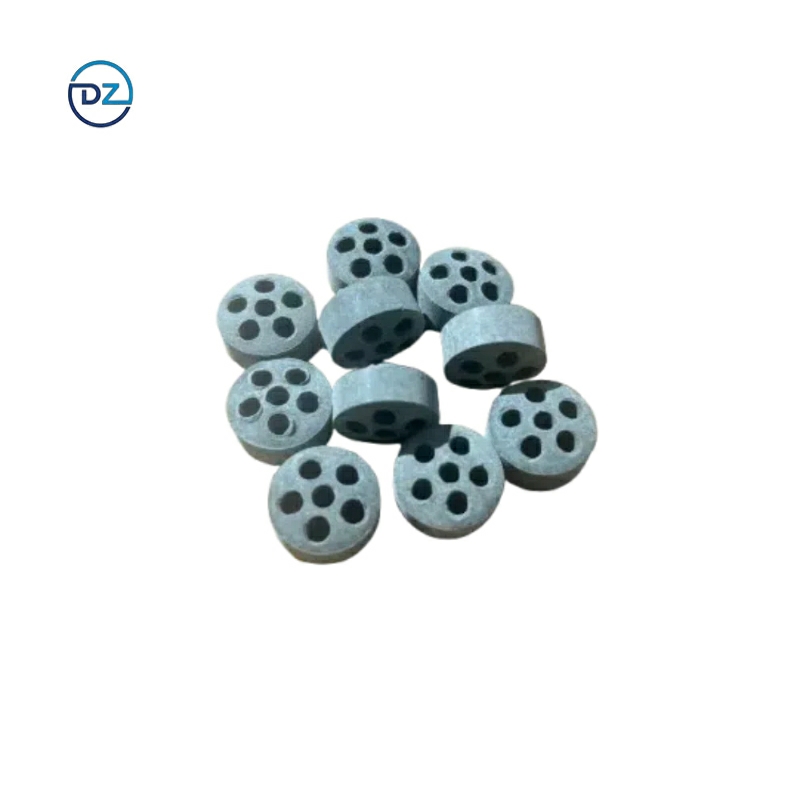

Outer appearance and shape：	gray 6-holes cylinder, Φ17×11
Specific gravity：	0.95-1.05kg/L
Average radial crushing strength	≥ 400N/pc
Chemistry composition	NiO≥16 wt.%, CaO , K2O and additives:appropriate amount,Al2O3: balance
Inlet gas temperature：	430～650℃
Outlet gas temperature：	600～980℃
Steam/carbon ratio：	≥2.2

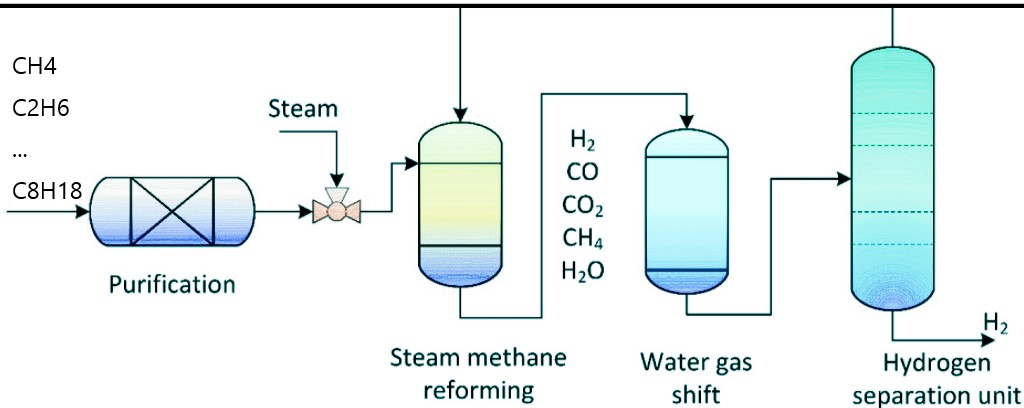

General steam reforming process on the industrial scale
