Zinc Oxide Desulfurization catalyst-Sulfur Removal Catalyst-

Zinc Oxide Desulfurization catalyst

SDDZ-ZINC400 Zinc Oxide Desulfurization Catalyst is widely applicable to feedstock purification processes in production of hydrogen, ammonia, alcohols and organic chemicals.
Main reaction of the desulfurization process is as follows: H2S+ZnO=ZnS+H2O

PRODUCT DESCRIPTION

Features and Scope of Application
DZC-ZINC400 Zinc Oxide Desulfurization Adsorbent is widely applicable to feedstock purification processes in production of hydrogen, ammonia, alcohols and organic chemicals. It can remove hydrogen sulfide from various feed gases (oils) to as low as less than 0.1ppm.

The adsorbent also is capable of converting and absorbing simple organic sulfur such as COS and CS2.
Zinc Oxide Desulfurization Adsorbent is highly adaptable. It can work in severe conditions with high sulfur absorption capacity, high activity, high strength , good sustainability for activity and sulfur absorption capacity, and good tolerance to high steam to gas ratio. It can obtain satisfactory operation results both at higher ( about 400℃) and lower (about 200℃) temperature.

Typical physical and chemical property

Name	Zinc Oxide Desulfurization Catalyst
Model	DZC-ZINC400

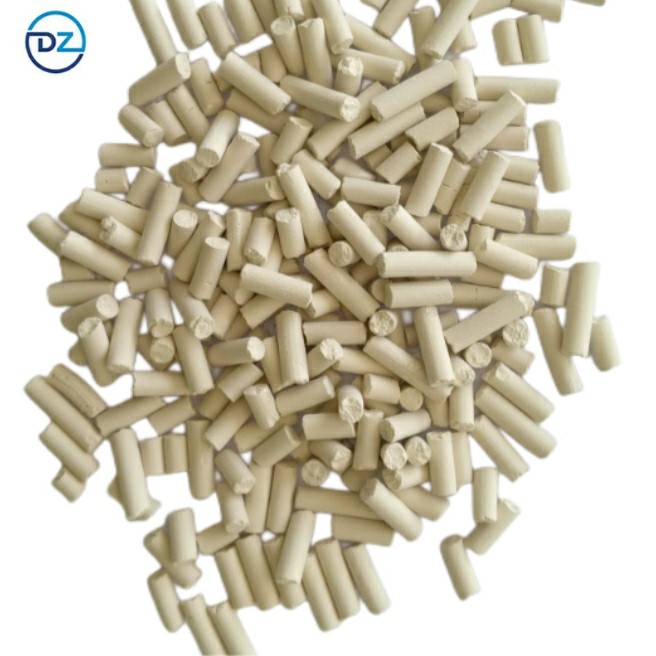

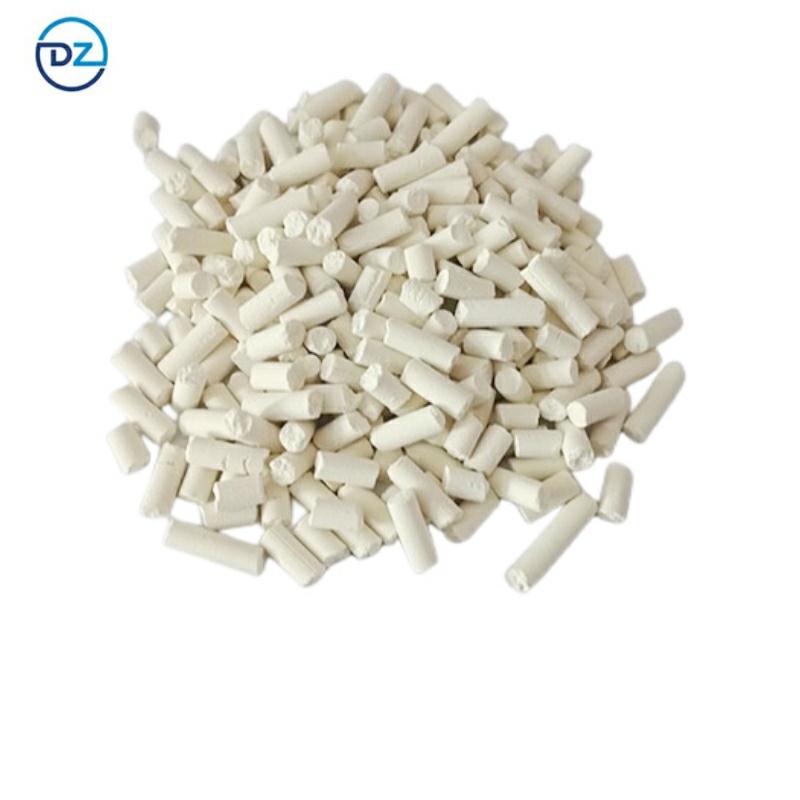

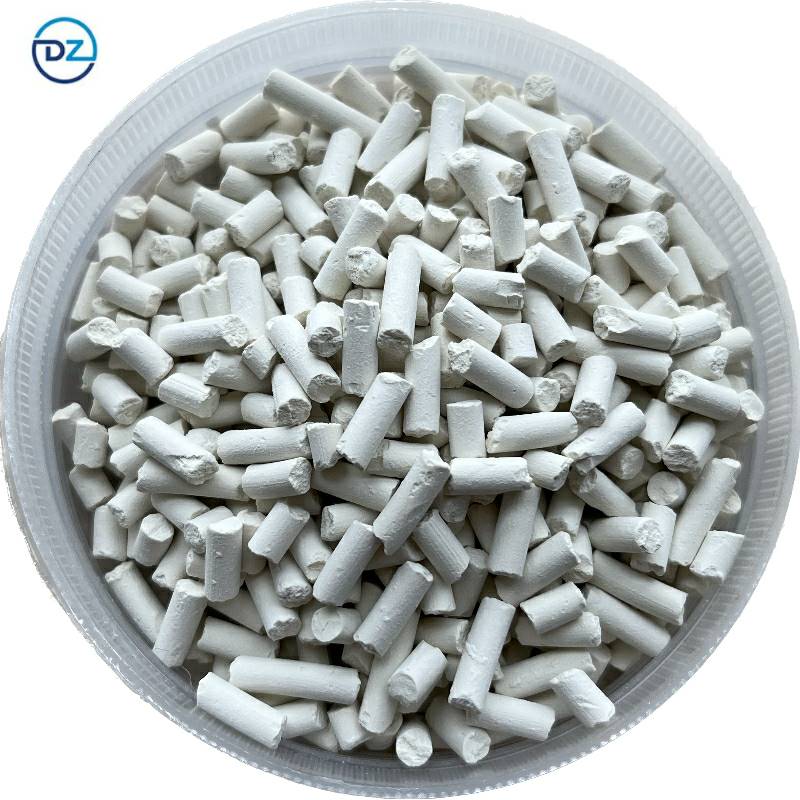

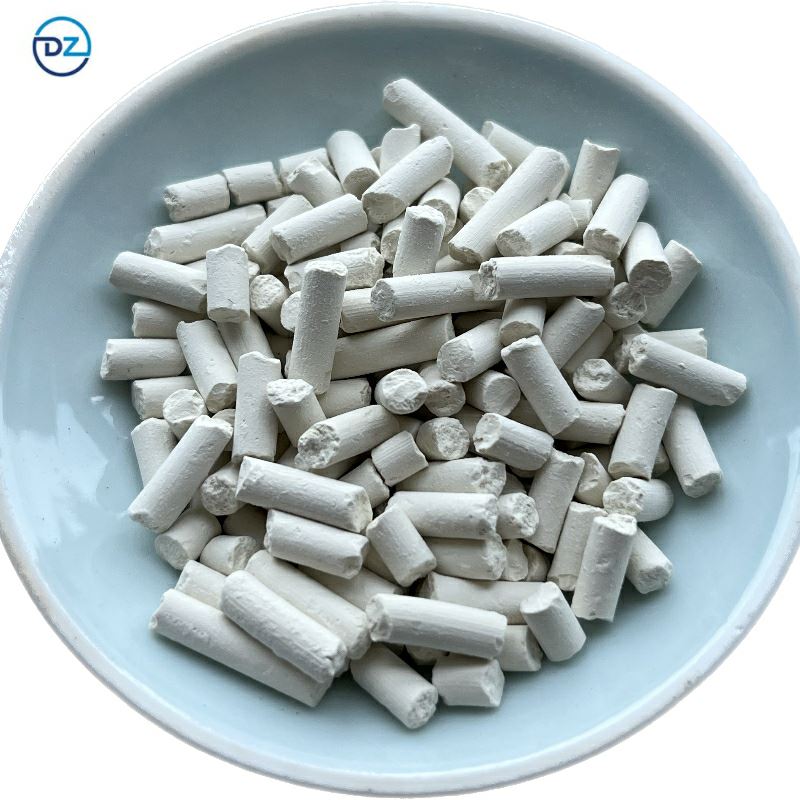

Appearance	White or Light-gray extrusions
Particle size , mm	Φ4mm×4-15mm
Bulk density, kg/l	1.0-1.3
Loss On Ignition, %	Max 2
Zinc oxide content, %	≥90
Loss on abrasion, ％	Max6
Sulfur capacity, %	≥20（220℃）
Sulfur capacity, %	≥30（350℃）
Pressure, MPa	Ambient to 4
Temperature,℃	200～400
Steam/feed gas	1～1.5 or dry gas
Space velocity, h－1	1000～3000（gas）
Space velocity, h－1	1～6（liquid）
Sulfur in processed stream, ppm	＜0.1

Normal Operation Condition

Feedstock: light oil , residue cracking gas, natural gas, synthesis gas, coal gas and shifted gas, with recommended hydrogen sulfide concentration of less than 250 ppm.
