Nickel-based Methane Production Catalyst (DZC-JWH42) Carbon Dioxide Hydrogenation to Methane-Other Catalysts-

Nickel-based Methane Production Catalyst (DZC-JWH42) Carbon Dioxide Hydrogenation to Methane

DZC-JWH42 is a methanation catalyst with higher content of nickel on aluminium support, which is used in the process of methane production,converting CO2 and H2 in syngas, into CH4.
The reaction is summarized as below:
CO2+4H2 ⇌ CH4 + 2H2O

PRODUCT DESCRIPTION

The main physicochemical properties of Methanation Catalyst DZC-JWH42 are shown in the Table below.

The main components are NiO, Al2O3 and a small amount of additives.

Typical physical and chemical property

Name	Methanation Catalyst
Model	DZC-JWH42

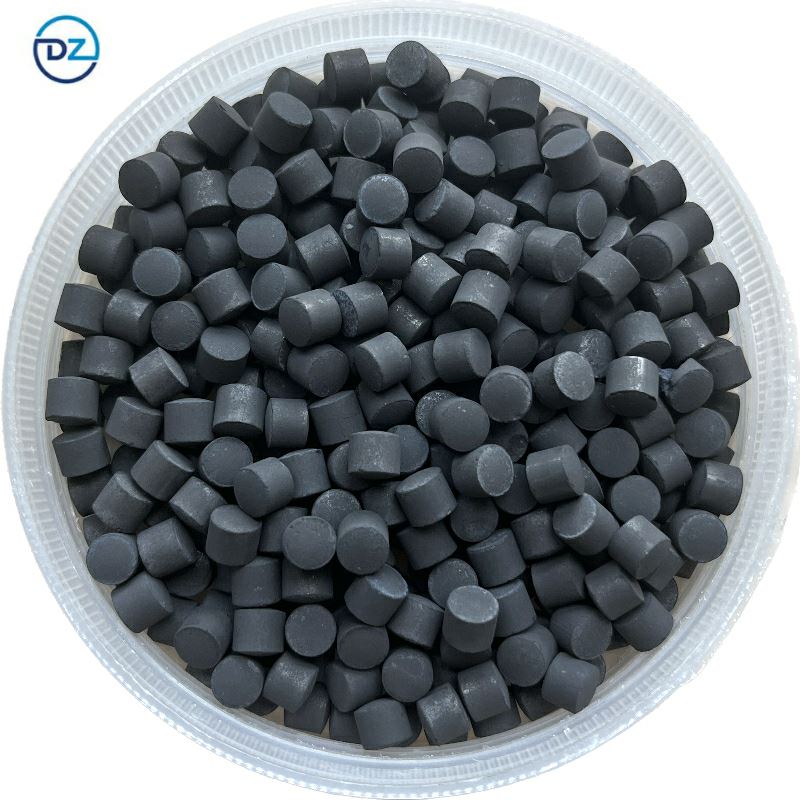

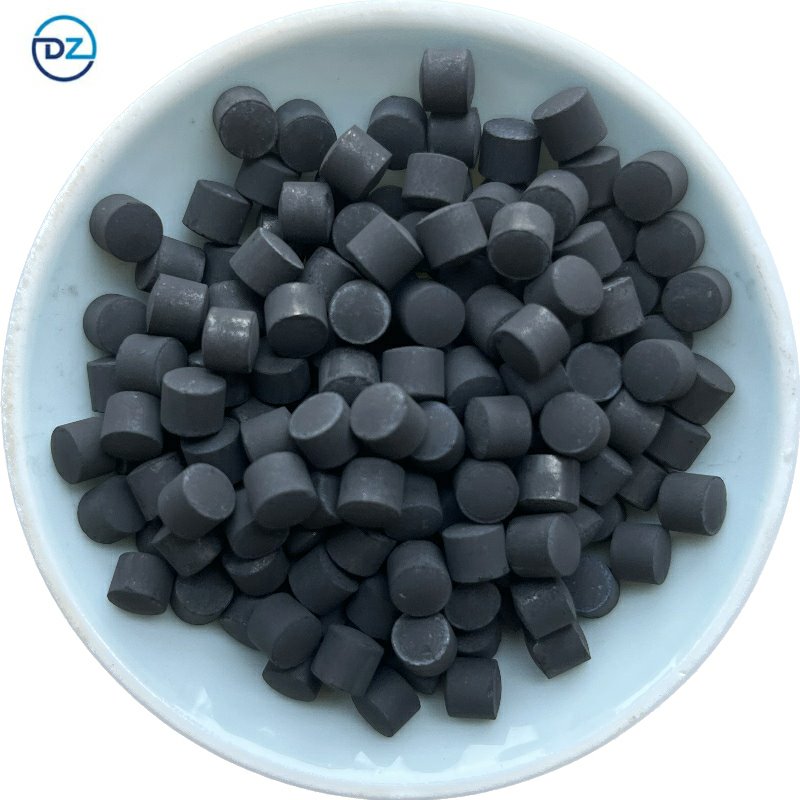

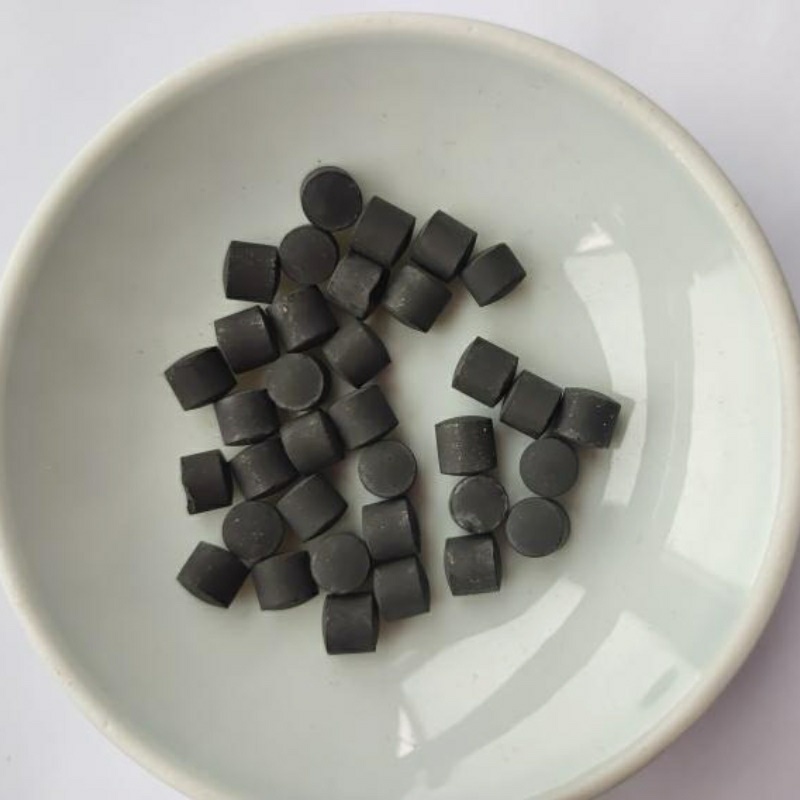

Appearance	Black Tablet
Size (mm)	Ф6×5mm
Bulk density (kg/l)	1.35-1.45
BET （㎡/g）	≥50
Crushing strength/(N/P)	≥200
NiO %	≥40.0
Al2O3 (%)	Balance
Additives (%)	Right amount

The use conditions of Methanation Catalyst DZC-JWH42 (High content of Nickel) are as follows:

Operating conditions:

(1) Operating pressure: normal ~10 MPa;

(2) Inlet temperature: 250~350 ℃;

(3) Operating temperature: 240~650 ℃;

(4) Dry gas space velocity: 2000~15000 h^-¹;

(5) Maximum tolerable temperature: 650 ℃;

(6) Raw gas related impurity content requirements:

Sulfur ≤0.1ppm, total chlorine ≤0.1ppm, heavy metal ≤10ppb, tar ≤1ppm, ammonia ≤10ppm, benzene ≤10ppm, naphthalene ≤1ppm, methanol ≤50ppm, and no saturated olefins.
