ESR Ethanol Steam Reforming Catalyst DZC-E69
DZC-E69 is a sintered type steam-reforming catalyst specifically formulated for ethanol steam reforming applications. With nickel as the active ingredient, alumina as the support, and basic oxides as the promoter, this catalyst features an optimized structure that enhances mechanical strength, increases surface area utilization, and improves anti-carbon formation capability. The addition of basic oxides further promotes catalyst activity at lower temperature ranges.
PRODUCT DESCRIPTION
Technical Specifications
Chemical Composition
Component | Content (wt.%) |
NiO | ≥14 |
CaO | Proprietary |
SiO₂ | <0.2 |
Al₂O₃ | Balance |
Physical Properties
Parameter | Specification | Unit |

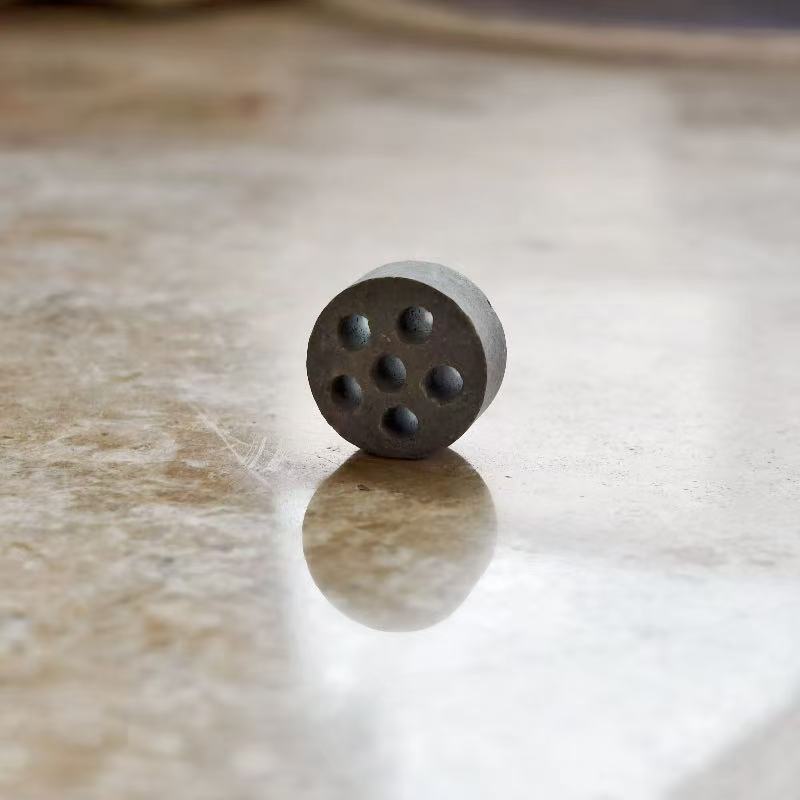

Appearance | Six-holes cylinder with both domed | - |
Particle size | φ 16×9×3.5 | mm |
Bulk density | 0.95~1.05 | kg/l |
Crush strength | ≥400 | N/gr |
Operation Conditions
Parameter | Range | Unit |
Operating temperature | 430~650 (In) | °C |
600~980 (Out) | °C | |
Steam to carbon ratio | ≥2.2 | - |
Key Features
Optimized for ethanol steam reforming applications
Enhanced resistance to carbon deposition
High mechanical strength and thermal stability
Excellent activity at lower temperature ranges
Stable performance over extended operation periods
